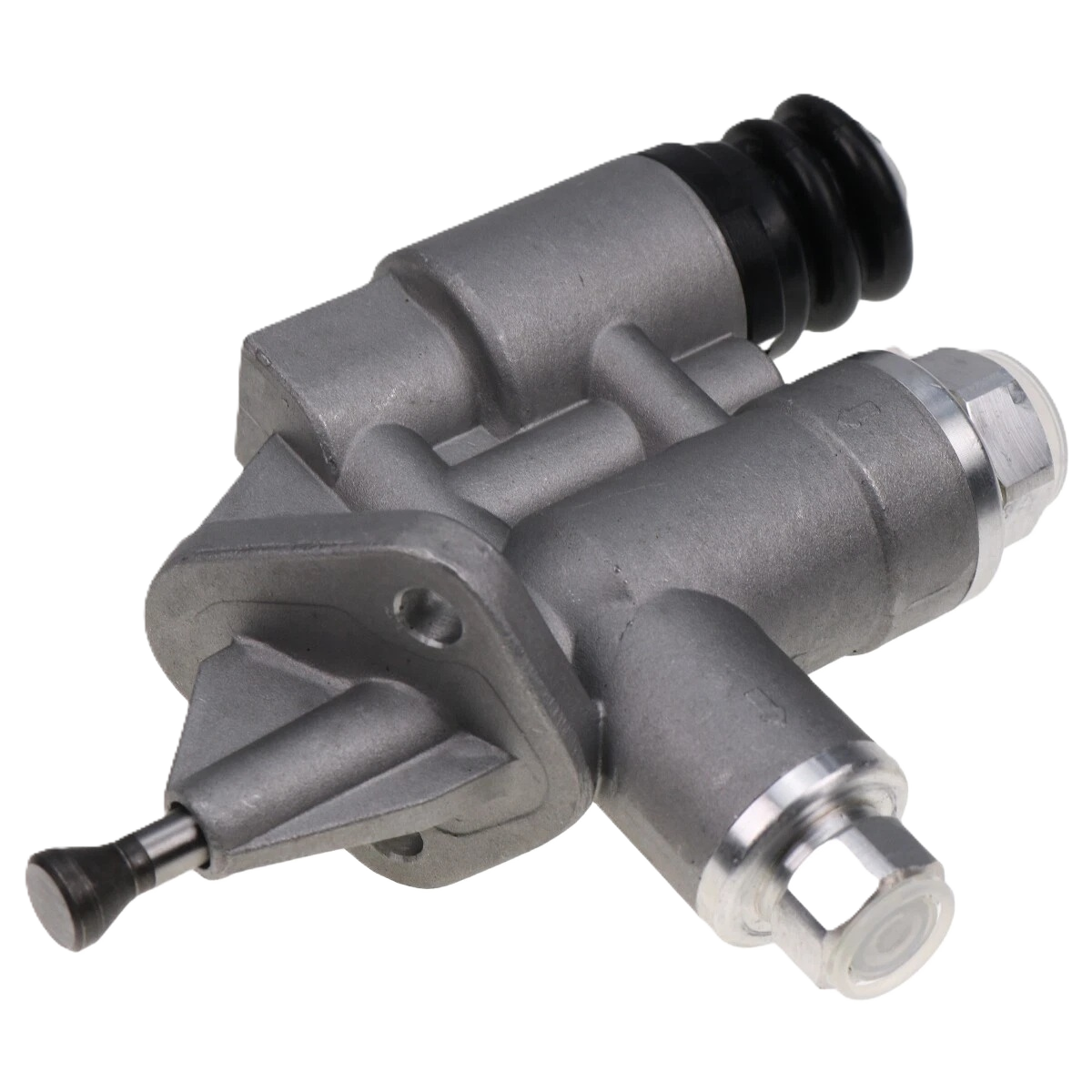

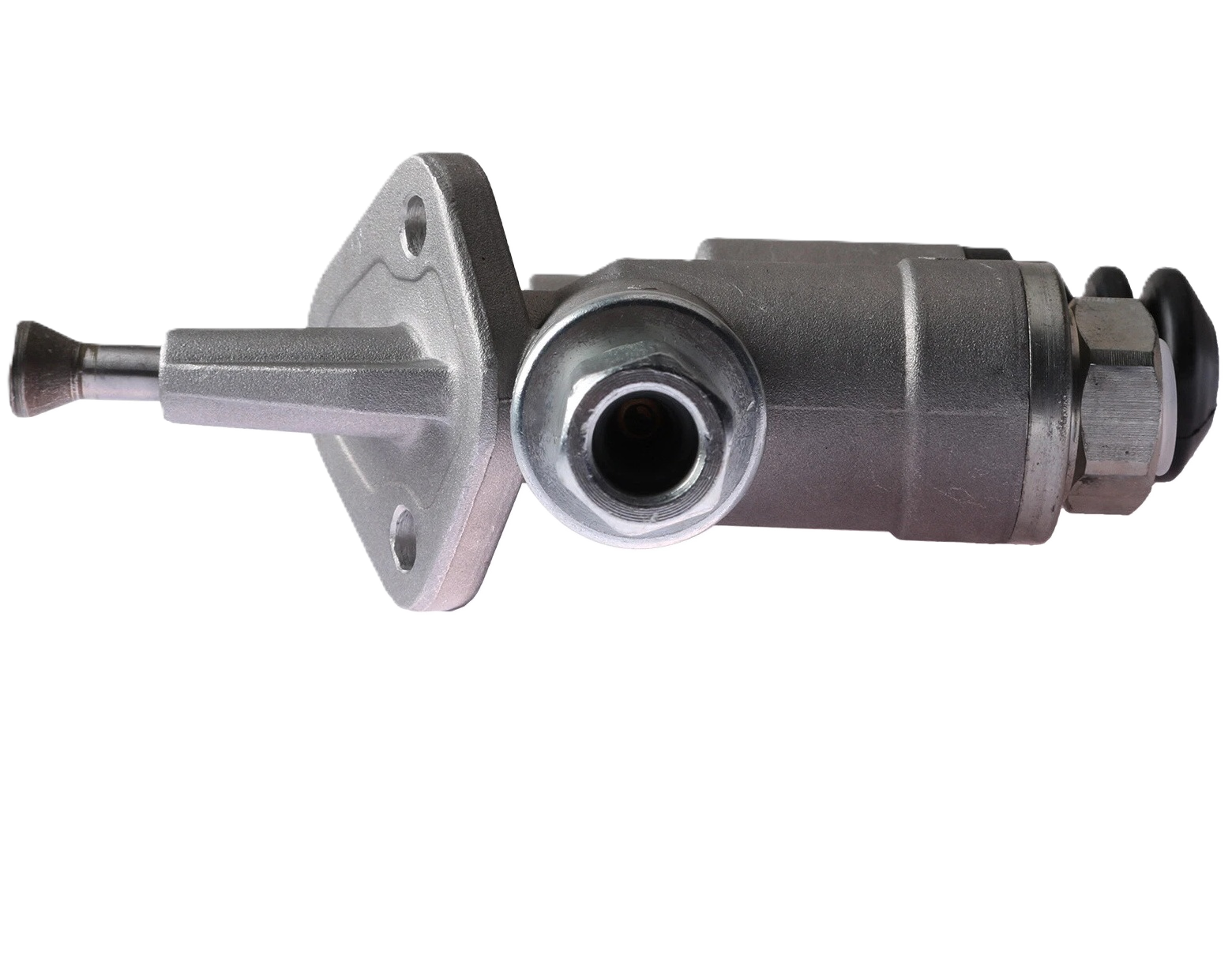

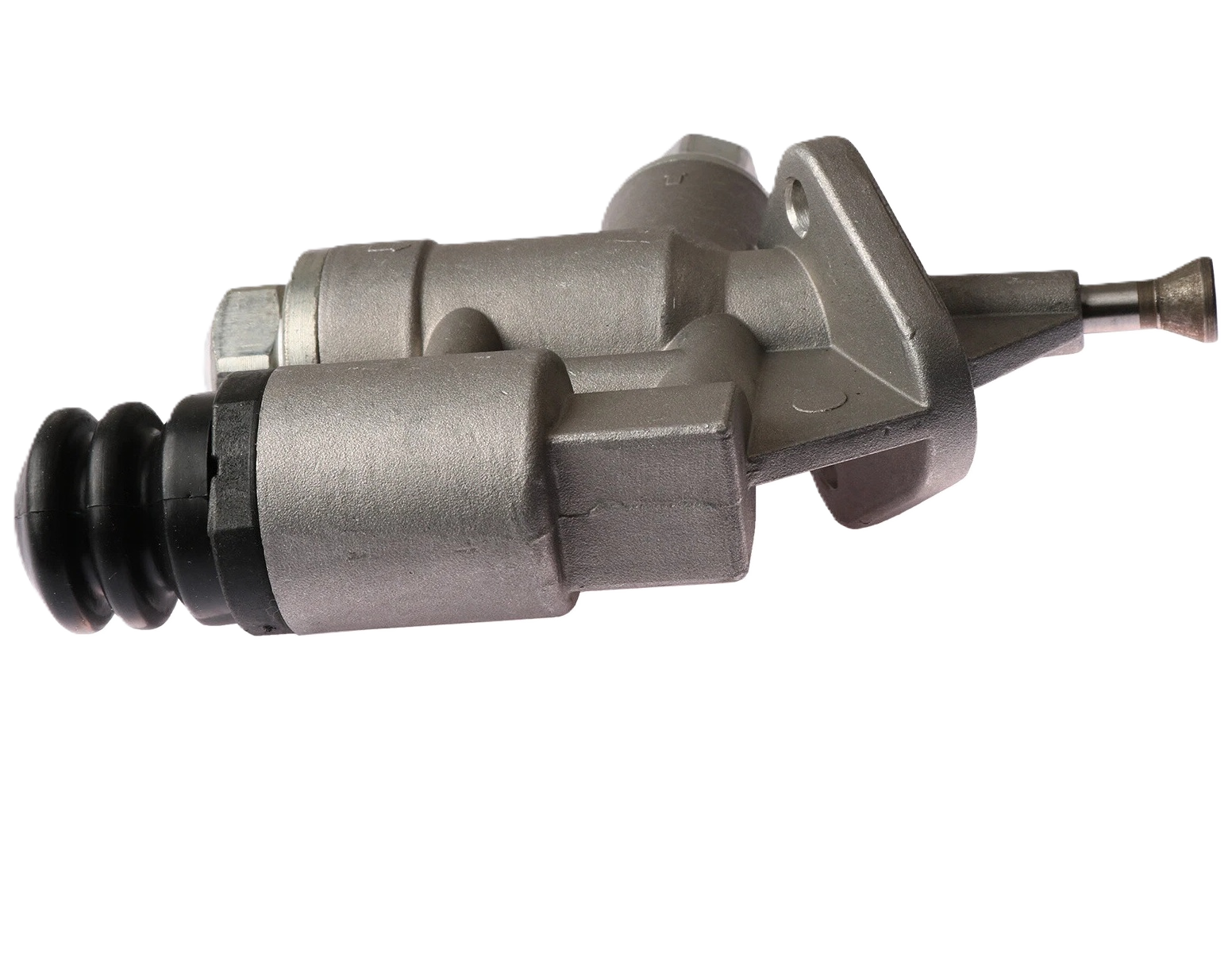

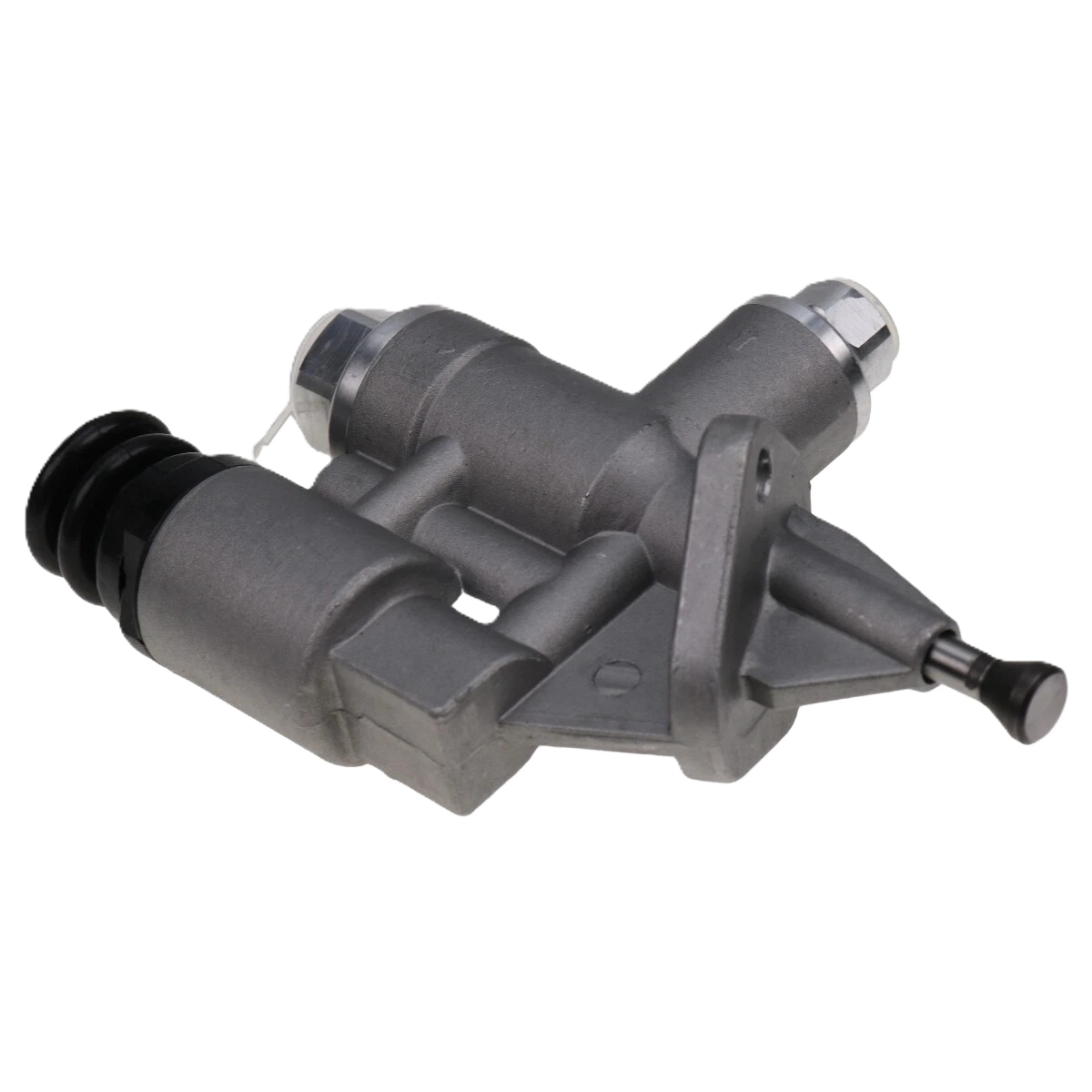

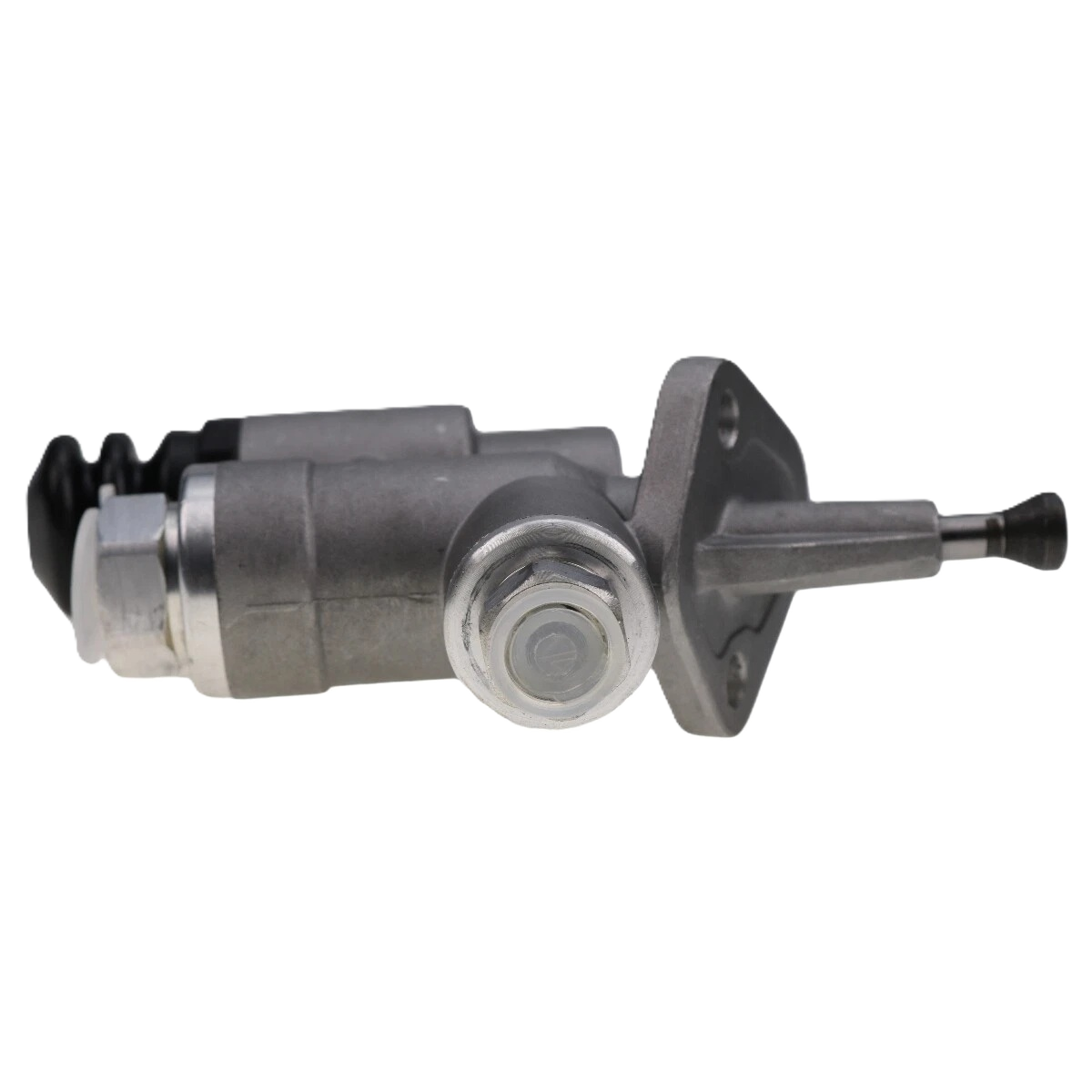

3917998 3917999 4988749 FUEL TRANSFER PUMP FOR CASE JLG/CUMMINS ENGINE
$55.00
Did you like this product? Add to favorites now and follow the product.
Description
3917998 3917999 4988749 FUEL TRANSFER PUMP FOR CASE JLG/CUMMINS ENGINE- USA
BUY WITH CONFIDENCE, US SELLER, US STOCK, FREE SHIPPING, HASSLE-FREE RETURNS
| Item Condition | Brand-new |
| Brand | AASMK USA |
| Custom Label: | GABOX-07 |
| Product Long Title | 3917998 3917999 4988749 Fuel Transfer Pump for Cummins 4BT 6BT 5.9 Case Engine Mechanical Lift Pump |
| Specifications | ·     Part Type: Mechanical Fuel Transfer Pump / Lift Pump
·     Pump Style: Engine Driven Diaphragm Pump ·     Operating Type: Camshaft Actuated Lever Pump ·     Housing Material: High strength cast aluminum alloy ·     Internal Components: Hardened steel / spring steel / fuel-resistant diaphragm ·     Seal Material: NBR / Viton fuel resistant rubber ·     Finish: Corrosion resistant coating ·     Fuel Type: Diesel ·     Flow Direction: Marked on housing ·     Pressure Type: Low pressure supply pump ·     Typical Output Pressure: 4 PSI – 8 PSI (0.3 – 0.55 bar) ·     Typical Flow Rate: 25 – 40 GPH (95 – 150 LPH) ·     Mounting Type: 2 Bolt flange mount ·     Mounting Hole Distance: Approx. 45 mm center to center ·     Actuator Type: Mechanical push rod / camshaft lever ·     Primer Type: Manual hand primer plunger ·     Inlet Thread Size: 1/2″-20 UNF (typical Cummins) ·     Outlet Thread Size: 1/2″-20 UNF (typical Cummins) ·     Bleed / Return Port: Integrated check valve port ·     Gasket Included: Yes |
| Description: | This fuel transfer pump is a high-quality replacement designed for Cummins diesel engines used in Case construction, industrial, agricultural, and generator applications.
The pump supplies fuel from the tank to the injection pump at the correct pressure to ensure proper starting, stable idle, and full engine power.
This style pump is commonly used on Cummins 4BT, 6BT, and 5.9 mechanical engines and is not interchangeable with later 6C / 8.3 lift pumps even though the housing may look similar.
Manufactured with precision-machined internal valves, durable diaphragm, and high-quality seals for long service life. |
| What Is Included: | 1 × Fuel Transfer Pump
1 × Mounting Gasket Protective Packaging |
| Engine Number: | Compatible with Cummins engines including:
Cummins 4BT Cummins 6BT Cummins 5.9 Cummins B Series Case Cummins Engines Industrial Cummins Engines Generator Engines Verify part number before purchase |
| Interchange Part Number for Reference: Applications: | 3917998
3917999 4988749 3936316 3925709 3914086 |
| Superseded Part Number: | 3917998 → 3917999 3917999 → 4988749 4988749 → Latest replacement |
| Applications: | Case Construction Equipment, Case Backhoe Case Loader Case Excavator Cummins Industrial Engines Cummins 4BT / 6BT / 5.9 Generator Engines Agricultural Equipment Truck Engines with mechanical pump |
| Common Failure Symptoms: | Hard starting
Low fuel pressure Engine stalls Loss of power Fuel leakage Air in fuel line Injection pump starvation Engine dies under load |
| Important Fitment Note: | Cummins used several lift pump designs that look similar but are not interchangeable.
This pump replaces: 3917998 3917999 4988749 Not compatible with: 3936320 3936318 Different styles are used on 6C / 8.3 engines. Please match the part number before purchase. Contact us with the engine serial number if unsure. |
| Warning: | An incorrect lift pump may cause engine damage or injection pump failure. Always verify part number before installation. |
| Quality Assurance Note: | Pressure tested Leak tested OEM size and fit Heavy-duty construction Reliable aftermarket replacement Quality checked before shipping |
| Technical Recommendation: | Replace the fuel filter when installing a new pump. Prime the fuel system before starting the engine. Check fuel lines for restriction. Verify fuel pressure after installation |
| Features: | Heavy duty aluminum housing Precision internal valves Manual primer plunger Direct replacement Long service life Corrosion resistant Factory tested High quality seals Easy installation Ready to install |

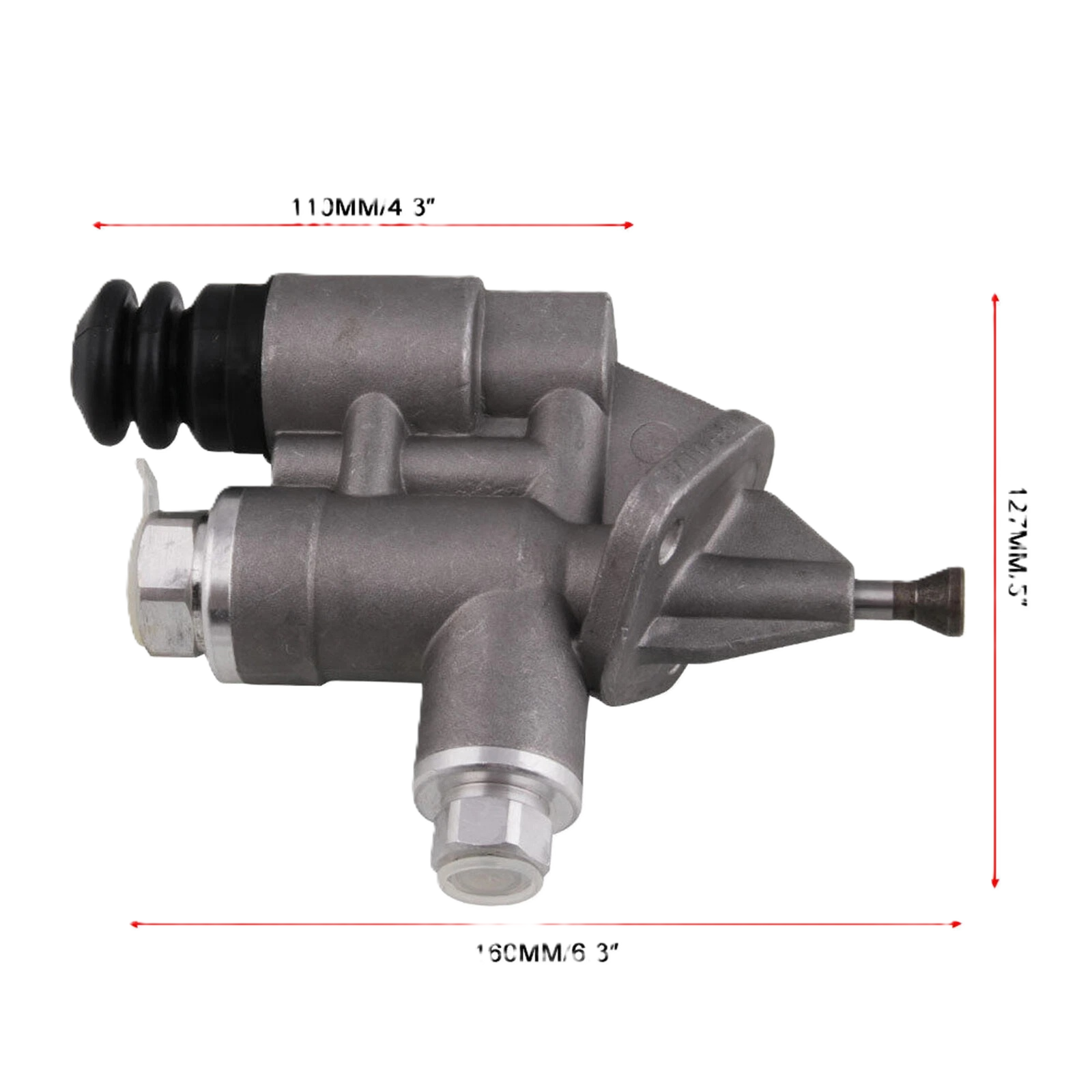

| Shipping Weight and Dimensions: | Weight: 3 lb Box Size: 8 × 6 × 5 in |
